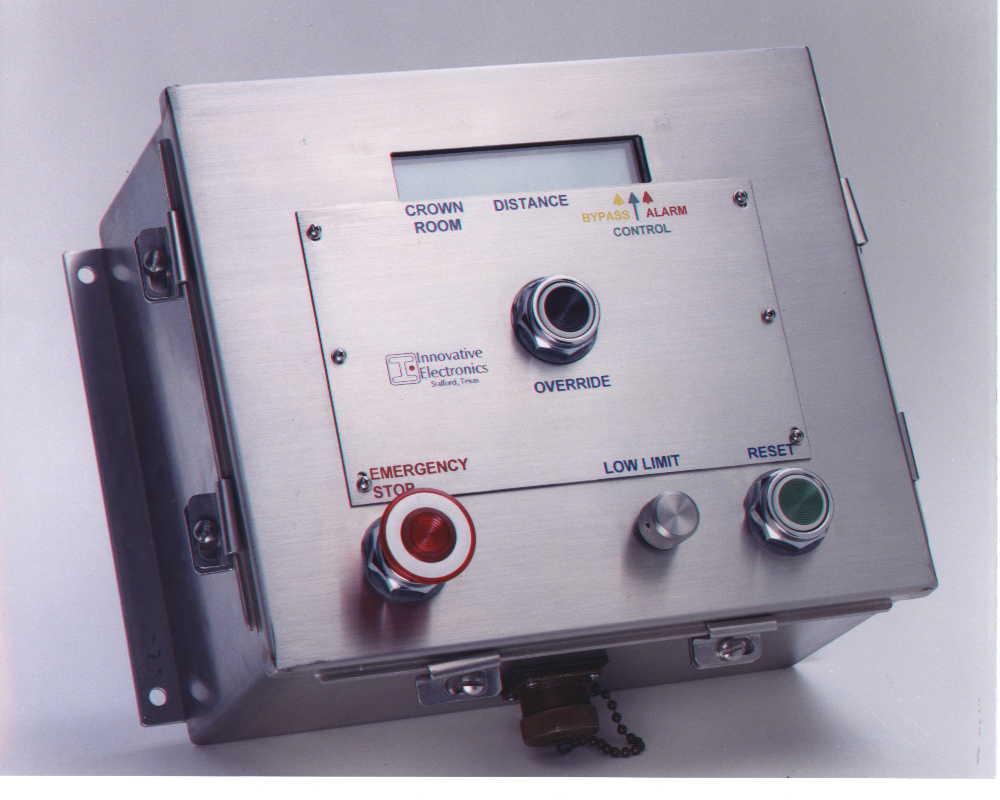

Electronic Block Protector

Computer Controlled Crown Protection, Floor Stop Protection

The “Intelligent Crownamatic” Incorporating “Crown Soft Stop”

a FIRMS® modular component

Related Products

l Traveling Block Protector l Electronic Crown Protector l Electronic Block Monitor l

Data Sheet - Letter	Download PDF	2 Pages	360K
Data Sheet - A4	Download PDF	2 Pages	360K
In order to read the PDF, you will need Adobe Acrobat Reader. Its FREE

SERIES 4700

MODULAR CONSTRUCTION Quick, simple installation
MICROPROCESSOR BASED Minimum parts, simple design
BLOCK SPEED CONTROL Keeps block velocity versus position within safe operating parameters
ELIMINATES NEED FOR DERRICK MAST EXTENSION
INCLUDES FLOOR STOP
AUTO-DRILLER OPTION
ANTI-COLLISION OPTION
RS 232 SERIAL INTERFACE PORT
PATENTED DESIGN U.S. Patent# 5,342,020

CROWN PROTECTION
Derrick designs generally incorporate extra space at the crown area to allow for safer operation of the traveling block in an area that is hard for the driller to see, and also to allow for potential traveling block overrun of the upper mechanical stop caused by high block ascending speeds near the crown. Fitting portable top-drives to rigs reduces this extra space increasing the possibility of the traveling block impacting the crown. By installing the Electronic Block Protector, safe and accurate operation of the Traveling Block is maintained to the maximum upper block travel limit. The Electronic Block Protector eliminates the problem of overrunning the top stop by monitoring and controlling the block’s ascending velocity when the traveling block is being operated near the crown. This allows the traveling block’s upper travel limit to be safely moved closer to the crown, eliminating the necessity of adding extra derrick height.

SYSTEM OPERATION
When the traveling block is ascending, the Electronic Block Protector continually monitors block position and speed. Using this information, the system calculates the distance needed for the block to coast to a stop. If the traveling block’s ascending velocity, versus position toward the crown, is too great, the EBP reduces the block’s speed by reducing the signal to the driller’s foot throttle control. When the block has slowed to the desired speed, the signal to the foot throttle is returned. If the traveling block reaches the upper travel limit, the EBP sets the drawworks brake, stopping the traveling block. By providing a controlled slowing, or “Soft Stop”, of the traveling block as it approaches it’s upper travel limit, the problem of overrunning the top stop is eliminated. Similarly eliminated are the potential hazards normally associated with suddenly stopping a fast ascending, lightly loaded, traveling block. When the block is descending the EBP will stop the block at the low limit.

Specifications:
Power: Nominal: 115/230VAC 50/60Hz 135 to 370VDC Brownout: 95 to 264VAC, 47 to 400HZ

Operating Temperature: -40°to+185°F(-40°to +85°C)

The EBP system does not require a purge system. The EBP can interface with the Innovative Electronics FIRMS® (Fully Integrated Rig Managment System), the crown TV system, rig computer systems, logging computer systems, and can be programmed to provide anti-colision capability for the RBS, automatic pipe racker, or Iron Roughneck. An auto-drilling option is also available. The EBP can be supplied in various configurations depending on requirements. Systems are available with or without cables and/or junction boxes, for permanent installation or for moving from site to site. These components can be combined with other Innovative Electronics packages for complete consoles containing both hydraulic and electronic gauges and instruments. This system can be supplied in various configurations depending on requirements. Systems are available with or without cables and/or junction boxes, for permanent installation or for moving from site to site. These components can be combined with other Innovative Electronics packages for complete consoles containing both hydraulic and electronic gauges and instruments.

Innovative Electronics
P.O. Box 1367, Stafford, Texas, USA 77497
Voice (281) 240-7355 Fax (281) 240-7356
